Description

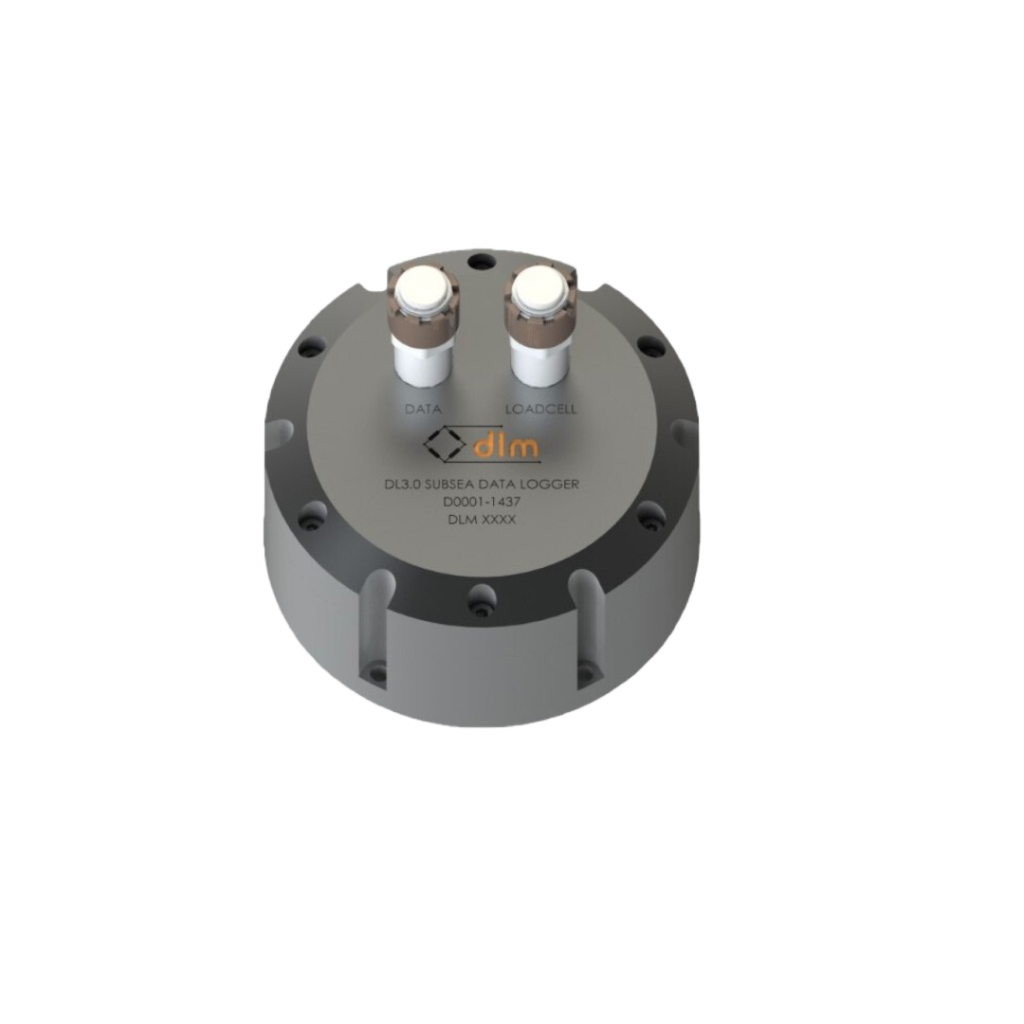

The Subsea Data logger is a proprietary data logger designed by DLM for use in the offshore industry. Comprising of multiple onboard sensors and with extra capacity for external mV or mA inputs, the DL-3.0 can sample onboard and external sensors at customisable sample rates of up to 800Hz.
The data logger is housed within a compact stainless steel 316 enclosure with mounting holes for easy integration into existing or new subsea equipment. Ideal for long or short-term deployments on offshore and subsea structures, but also ideal for R&D projects where verification data is required to compare against computer models.
Part Number: 0001-1437
Key features
- Self-powered internal data logger
- Internal 16Gb SD card for storing logged data
- PC interface to download data in .CSV format
- Subsea connecter for mV or mA
- 10.4 Ah lithium battery
Applications
- Array cable monitoring
- Monitoring subsea acceleration
- Movement monitoring on Offshore structures
Product specification
| Load Cell Input: | mV / 4-20mA |
| Load Cell Sensor Range: | 0.4 – 5.0 mV/V / 3.00mA – 22.00mA |
| Load Cell Bridge Resistance: | 350 - 2000Ω |
| Load Cell Logging Frequency: | 22 User selected options between 800Hz and once per hour |
| Accelerometer Input: | Onboard sensor |
| Accelerometer Sensor Range: | ±125dps, ±250dps, ±500dps, ±1000dps or ±2000dps |
| Accelerometer Logging Frequency: | 17 User selected options between 416Hz and once per hour |
| Gyroscope Input: | Onboard sensor |
| Gyroscope Sensor Range: | ±125dps, ±250dps, ±500dps, ±1000dps or ±2000dps |
| Gyroscope Logging Frequency: | 17 User selected options between 416Hz and once per hour |
| Gyroscope Logging Frequency: | Onboard |
| Status Temperature: | ° C |
| Status Battery Status: | Charge level |
| Logging Frequency: | 8 User selected options between once per 10s and once per hour |
| Protocol: | RS232 ASCII |
| Baud Rate: | 9600 / 19200 / 38400 / 57600 / 115200 |
| Data Bits: | 8 |
| String format: | Configurable |
| Logging initiation: | PC software, external switch, time delay or set-point trigger |
| Data download: | Primary USB or secondary RS232 |
| Memory Card: | Sandisk 16Gb MicroSD |
| Pressure Test: | 200Bar |
| Connector: | MCBH-8 |
| Mounting Information: | 6 x 6.6mm thru holes on 118mm PCD |
| Body Material: | 17-4PH Stainless Steel |
| Material Cert: | 3.1 (3.2 upon request) |
| Country of Origin | UK |
