Description

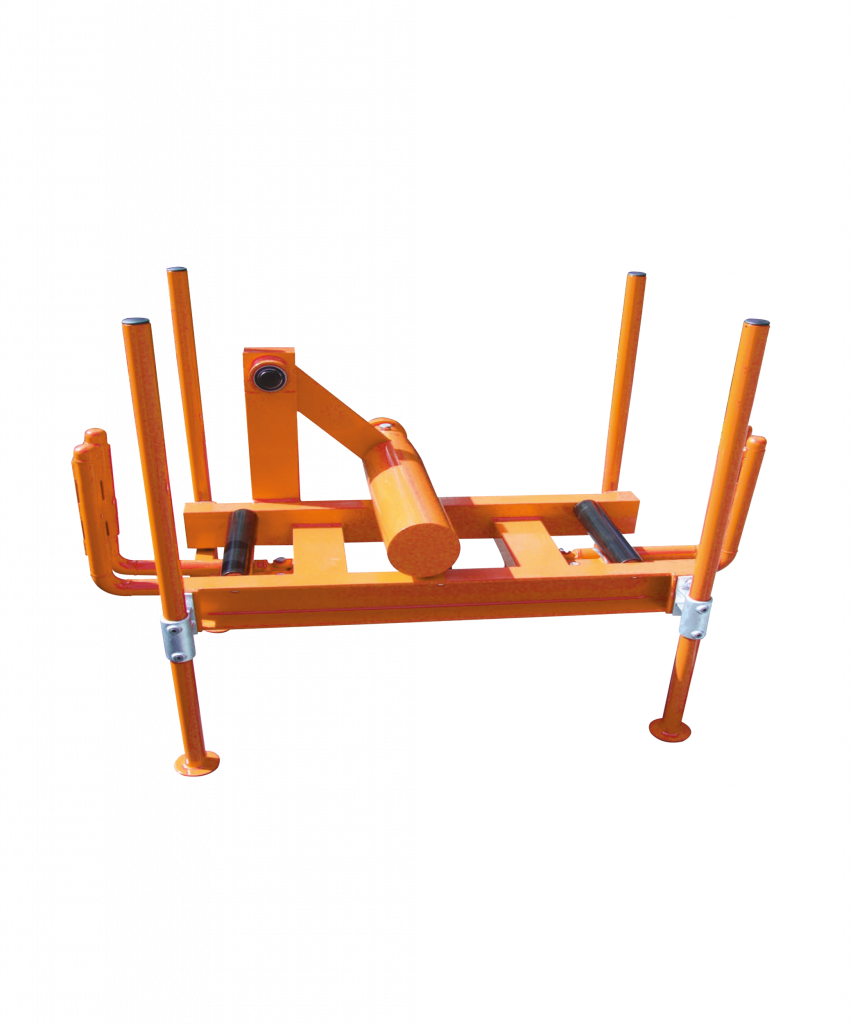

The DLM Roller Arm Cable Counter, is as its name suggests, a widely used and highly effective cable measuring device. Frequently used on cable laying vessels it combines durable, robust design with high reliability.
The counter is fitted with a heavy duty roller arm which supplies data via the sealed rotary quadrature shaft encoder. The counter can be supplied with a DLM pelicase display or as a stand alone unit supplying just the quadrature encoder output for integration into clients existing systems.
Key features
- Heavy duty roller arm spanning the width of the frame
- Adjustable frame height
- Cable guidance arms
- Sealed rotary enclosure with IP67 connector
- Supplied with signal cable and displays as required
Applications
- Cable laying operations
- Cable transfer
- Cable loading
- Cable measurement
Product specification
| Frame Height Range: | 1 metre |
| Roller wheel width: | 585mm |
| Track Width: | 400mm |
| Total Length: | 1.2metre |
| Cable Guidance Arm Max Opening: | 420mm |
| Wheel Distance per Revolution: | 0.5metre |
| Suitable for Cable Diameters: | 17mm to 350mm |
| Encoder Output: | Push Pull Quadrature |
